[Tech note] linux 1 liner to pull coin in circulation numbers via Kinesis API (KAG KAU). No privateKey, nor publicKey needed

Derek · Jun 18, 2023

You can also do this with watcher nodes:

https://kag.aboutkinesis.com/coin_in_circulation

JSON:

{
  "ingest_latest_ledger": 26482066,
  "history_latest_ledger": 26482066,
  "history_latest_ledger_closed_at": "2023-06-18T22:23:01Z",
  "history_elder_ledger": 2,
  "records": [
    {
      "circulation": "3301707.1746000",
      "mint": "8477263.0974000",
      "redemption": "5175555.9228000",
      "date": "2023-06-08T00:00:00Z"
    },
    {
      "circulation": "3304307.1746000",
      "mint": "8479863.0974000",
      "redemption": "5175555.9228000",
      "date": "2023-06-09T00:00:00Z"
    },
    {
      "circulation": "3308907.1746000",
      "mint": "8484463.0974000",
      "redemption": "5175555.9228000",
      "date": "2023-06-12T00:00:00Z"
    },
    {
      "circulation": "3309707.1746000",
      "mint": "8485263.0974000",
      "redemption": "5175555.9228000",
      "date": "2023-06-13T00:00:00Z"
    },
    {
      "circulation": "3311507.1746000",
      "mint": "8487063.0974000",
      "redemption": "5175555.9228000",
      "date": "2023-06-14T00:00:00Z"
    },
    {
      "circulation": "3307907.1746000",
      "mint": "8490463.0974000",
      "redemption": "5182555.9228000",
      "date": "2023-06-15T00:00:00Z"
    },
    {
      "circulation": "3283707.1746000",
      "mint": "8491263.0974000",
      "redemption": "5207555.9228000",
      "date": "2023-06-16T00:00:00Z"
    }
  ]
}

ZürichGnome · Jun 18, 2023

Basic analysis of coin in circulation using GNU units:

KAG

Code:

linux>
echo $q_kag
units -t "$q_kag ozt" t
units -t "$q_kag ozt XAG (1/ozt)" "million USD"
3283707.1746000
102.13471
79.498551

ozt
t
M USD

How much volume would that take up in one location?

Code:

linux>
units -o "%-5.2f" -t "(102.13471 t / silverdensity)" "m^3"
units -o "%-5.2f" -t "(102.13471 t / silverdensity)^(1/3)" m
units -t silverdensity
9.74
2.14
10.49 g/cm^3 = 10490 kg / m^3

Order of (10 cubic metres) = O (10 m^3)
If melted down, this metal would fit into a cube of side 2.14 metres.
Silver is about 10 times denser than water (rounding down from 10.49).
Thus 1 cubic metre of silver weighs about 10 tonnes. Rounding-down.

Quick sanity check for volume of cube of side 2.14:

Code:

linux> bc <<< "2.14^3"
9.80

Good enough.

KAU

Code:

linux>
echo $q_kau
units -t "$q_kau g" t
units -t "$q_kau XAU (g/ozt)" "million USD"
1242602.9868000
1.242603
78.230093

g
t
M USD

How much volume would that take up in one location?

Code:

linux>
units -o "%-5.2f" -t "(1.242603 t / golddensity)" "m^3"
units -o "%-5.2f" -t "(1.242603 t / golddensity)^(1/3)" m
units -t golddensity
0.06
0.40
19.30 g/cm^3 = 19300 kg / m^3

linux>
qalc "1/ 0.06"
1 / 0.06 ≈ 16.66666667

About one sixteenth of a cubic metre.
If melted down, this metal would fit into a cube of side 40 centimetres.
Gold is about 19 times denser than water.
Thus 1 cubic metre of gold weighs about 20 tonnes. Rounding-up.

Oh and for newbies:

Code:

linux> units -t ozt g
31.103477

For a short skim on where and how frequently units fetches its version of spot XAG, XAU, next post:

ZürichGnome · Jun 18, 2023

Derek said:

You can also do this with watcher nodes:

https://kag.aboutkinesis.com/coin_in_circulation

JSON:

{
  "ingest_latest_ledger": 26482066,
  "history_latest_ledger": 26482066,
  "history_latest_ledger_closed_at": "2023-06-18T22:23:01Z",
  "history_elder_ledger": 2,
  "records": [
    {
      "circulation": "3301707.1746000",
      "mint": "8477263.0974000",
      "redemption": "5175555.9228000",
      "date": "2023-06-08T00:00:00Z"
    },
    {
      "circulation": "3304307.1746000",
      "mint": "8479863.0974000",
      "redemption": "5175555.9228000",
      "date": "2023-06-09T00:00:00Z"
    },
    {
      "circulation": "3308907.1746000",
      "mint": "8484463.0974000",
      "redemption": "5175555.9228000",
      "date": "2023-06-12T00:00:00Z"
    },
    {
      "circulation": "3309707.1746000",
      "mint": "8485263.0974000",
      "redemption": "5175555.9228000",
      "date": "2023-06-13T00:00:00Z"
    },
    {
      "circulation": "3311507.1746000",
      "mint": "8487063.0974000",
      "redemption": "5175555.9228000",
      "date": "2023-06-14T00:00:00Z"
    },
    {
      "circulation": "3307907.1746000",
      "mint": "8490463.0974000",
      "redemption": "5182555.9228000",
      "date": "2023-06-15T00:00:00Z"
    },
    {
      "circulation": "3283707.1746000",
      "mint": "8491263.0974000",
      "redemption": "5207555.9228000",
      "date": "2023-06-16T00:00:00Z"
    }
  ]
}

Ah yes:

Code:

linux>
curl -s https://kag.aboutkinesis.com/coin_in_circulation | tail -8
    {
      "circulation": "3283707.1746000",
      "mint": "8491263.0974000",
      "redemption": "5207555.9228000",
      "date": "2023-06-16T00:00:00Z"
    }
  ]
}

curl -s https://kau.aboutkinesis.com/coin_in_circulation | tail -8

ZürichGnome · Jun 19, 2023

Actually let's sidetrack again.

Instead of looking at source of XAG and XAU for GNU units (spot prices Ag Au respectively), let's go and fetch the price of KAG and KAU directly from KMS Exchange on automatic.

This does involve modifying some python and using private and public API keys. I'll include the gist of the code below.

First, we acknowledge the great work by csokun at github who is likely one of the / the (?) central workhorse (brains?) behind the whole system.

H/T his API sample python source code here

Let us now ruthlessly mangle that down to our current purposes:

fetch (get ?)
USD
P(KAG) bid ask mid
P(KAU) bid ask mid

After only a few minutes' work (thanks in large part to the clarity of csokun's skeleton example), we get:

Code:

linux> python3 Get-KAG-KAU-versus-USD-bid-mid-ask.py
KAG_USD bid ask mid
24.3
24.31
24.3
KAU_USD bid ask mid
62.91
63.02
62.96

To compare with GNU units result for spot (not necessarily at all the same thing!):

Code:

linux>
units -t XAG USD
units -o "%5.2f" -t "XAU (g/ozt)" USD
24.21
62.96

I'll include "my" (ha!) python code minus the security parts using this snipping technique:

Code:

grep -n "def main" Get-KAG-KAU-versus-USD-bid-mid-ask.py
linux> grep -n "def main" Get-KAG-KAU-versus-USD-bid-mid-ask.py
92:def main():
sed -n '92,$p' Get-KAG-KAU-versus-USD-bid-mid-ask.py > demo.py
nl -ba demo.py

The nl command is just to check I cut out the sensitive security parts.
zip 'em up and away we post

Code:

linux> zip -j API-demo-`date -u +"%Y-%m-%d-T%T-%Z"`.zip demo.py
  adding: demo.py (deflated 71%)
linux> zip -sf API-demo-2023-06-19-T00\:50\:09-UTC.zip
Archive contains:
  demo.py
Total 1 entries (785 bytes)

ZürichGnome · Jun 19, 2023

ZürichGnome said:
For a short skim on where and how frequently units fetches its version of spot XAG, XAU, next post:

Aha that's how you do a quote! You select it first while reading with the mouse (select option Quote). Then insert later when editing a post. Gotcha!

To refresh units_cur with up-to-date prices,

Code:

sudo units_cur
[SNIP]

units_cur
is part of
GNU units

If you have linux and you want to check,

Code:

man units
man units_cur
units_cur -h
more /var/lib/units/currency.units

After some sniffing around, it appears units_cur goes to packetizer by default. You can make it point elsewhere if you follow and experiment with the instructions in the man (for manual) alluded to above.

Download the python code from packetizer

Code:

wget http://services.packetizer.com/code/spotprices/spotprices.py
python3 spotprices.py

run it

Code:

linux> python3 spotprices.py
Gold: 1958.17
Silver: 24.21
Platinum: 990.55

Compare with direct calls to units:

Code:

linux> for i in XAG XAU XPT; do echo $i; units -t $i USD; done
XAG
24.21
XAU
1958.17
XPT
990.55

That's a MATCH init?
Always good when the world works rationally.
The above is for ozt in each of the precious metal types listed.

Let's switch it up a gear to find some fiat currency pairs with 1 ozt silver:

Code:

for i in AUD CAD GBP EUR USD; do echo $i; units -t XAG $i; done

AUD
35.198276
CAD
31.997762
GBP
18.931813
EUR
22.148536
USD
24.21

We follow-on that idea for 1 ozt gold.

Edit G to U
As in XAG to XAU

Which is after all the standard world-wide quoting convention.

Code:

linux> for i in AUD CAD GBP EUR USD; do echo $i; units -t XAU $i; done
AUD
2846.9314
CAD
2588.0652
GBP
1531.256
EUR
1791.4333
USD
1958.17

Divide that by 31 and a bit to standardize onto Kinesis standard gold unit KAU (1 g gold):

Code:

linux> units -t ozt
troyounce = 1|12 troypound = 0.031103477 kg

Code:

linux> for i in AUD CAD GBP EUR USD; do echo $i; units -t "XAU (g/ozt)" $i; done
AUD
91.530969
CAD
83.208228
GBP
49.231024
EUR
57.595917
USD
62.956627

"(g/ozt)" is all it took

GNU units may not be for traders but it's definitely a dream tool for analysts!
Out.

ZürichGnome · Jun 26, 2023

ZürichGnome said:

Ah yes:

Code:

linux>
curl -s https://kag.aboutkinesis.com/coin_in_circulation | tail -8
    {
      "circulation": "3283707.1746000",
      "mint": "8491263.0974000",
      "redemption": "5207555.9228000",
      "date": "2023-06-16T00:00:00Z"
    }
  ]
}

curl -s https://kau.aboutkinesis.com/coin_in_circulation | tail -8

Just to fiinish the job properly following up on @Derek 's suggestion:

Code:

linux> curl -s https://kag.aboutkinesis.com/coin_in_circulation | tail -8 | grep circulation | cut -d":" -f2 | sed 's/"//g' | sed 's/^ //g' | sed 's/\,$//'
3332907.1746000
linux> KAG_coin_in_circulation=` curl -s https://kag.aboutkinesis.com/coin_in_circulation | tail -8 | grep circulation | cut -d":" -f2 | sed 's/"//g' | sed 's/^ //g' | sed 's/\,$//'`
linux> echo $KAG_coin_in_circulation
3332907.1746000

3332907.1746000

matches current number on screen here:

There are probably better ways of scraping the data from curl. I don't know enough about CSS / Javascript for now.

All good enough for now though to go into the tool-box.

ZürichGnome · Sep 10, 2023

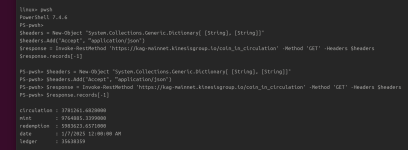

Using further experimentation
and
the jq package:

ZürichGnome · Sep 10, 2023

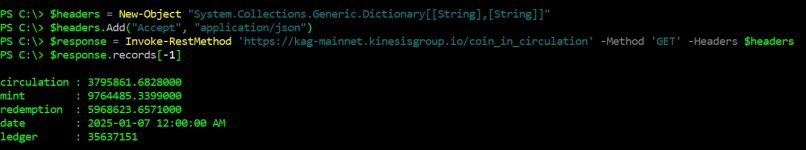

Better pull the last element in the list

matches Explorer:
